Intel NUC 11 Extreme Kit NUC11BTMi7 (Core i7-11700B) Barebone Mini PC

Powerful Performance
Get robust performance thanks to an 11th Gen Intel Core i7-11700B 8-core processor. Plus, integrated Intel UHD Graphics provide convenient onboard graphics and support for up to three monitors.

OS Ready
Supporting Windows 10 and 11 64-bit operating systems, the NUC 11 Extreme is ready to rock either OS, available separately.

Choose Your Internals
Two SO-DIMM slots accommodate up to 64GB of 3200 MHz DDR4 RAM for impressive performance. Add drives using two M.2 PCIe 4.0 x4 and two PCIe 3.0 x4 slots.

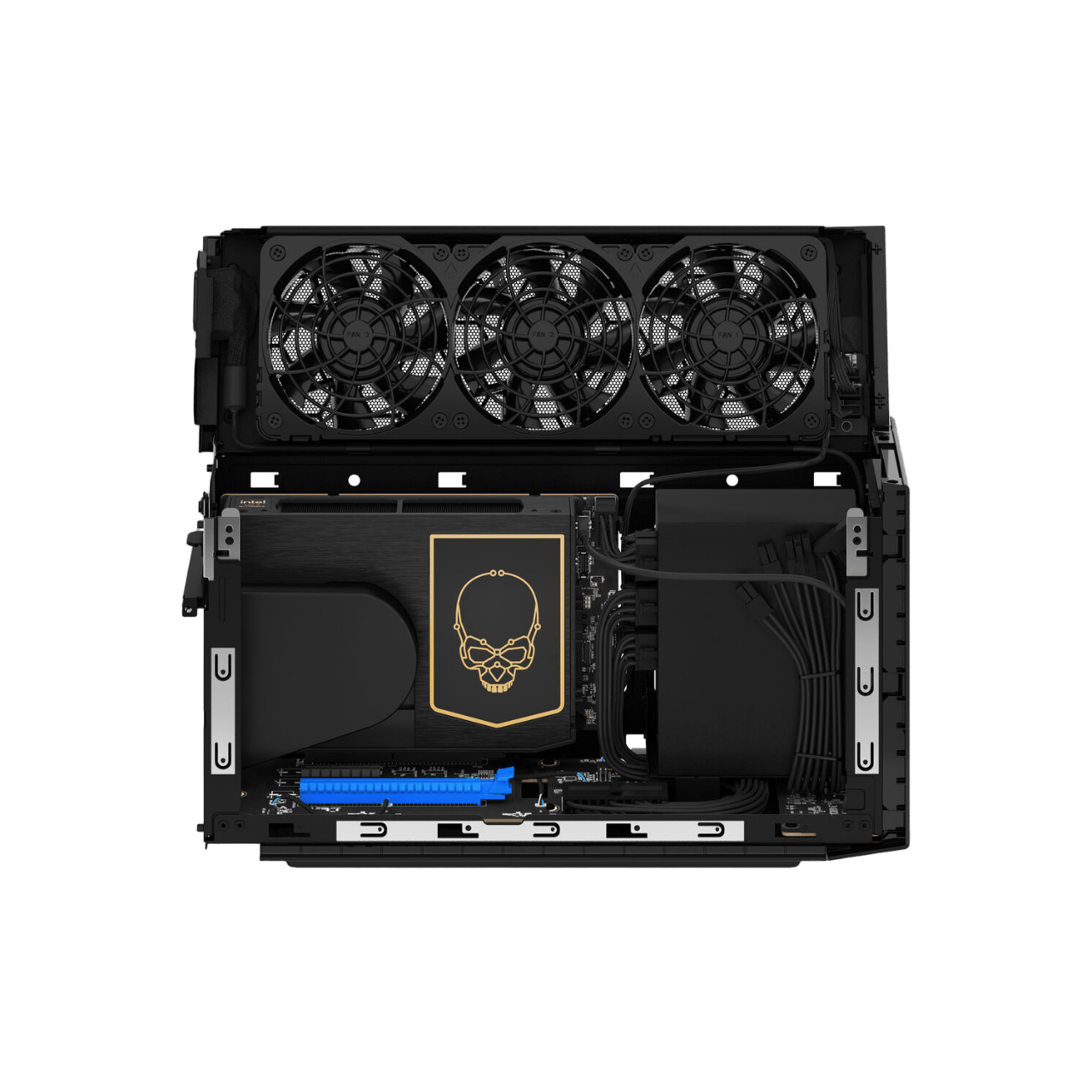

Easy Expandability
Install various adapter cards using the PCIe 4.0 x16 and PCIe 4.0 x4 slots. Accepting GPUs up to 12", the NUC 11 Extreme is built with gamers in mind.

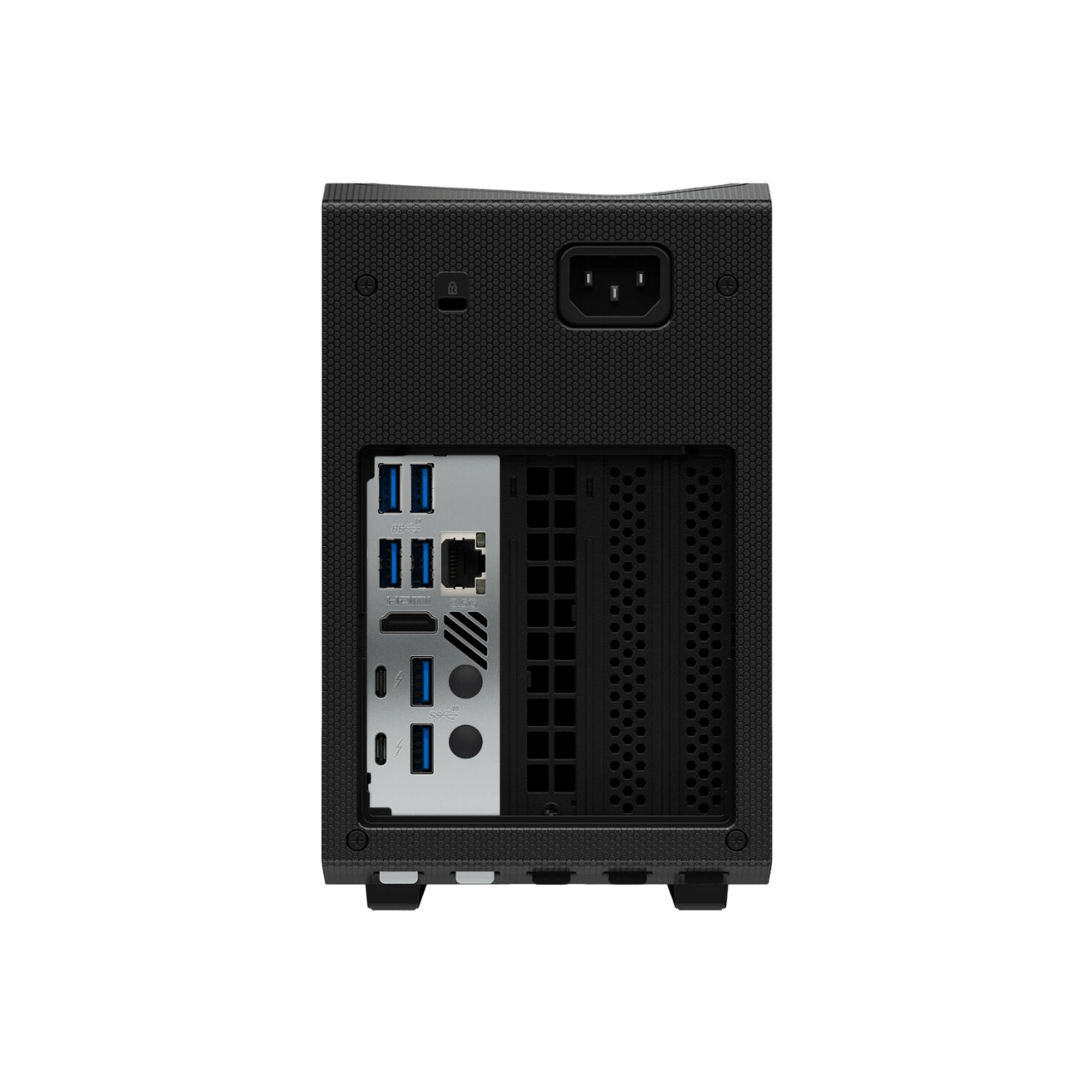

Ports Aplenty
Two Thunderbolt 4 ports and eight USB 3.1 Gen 2 Type-A provide easy connectivity for wired peripherals. Use Bluetooth 5.2 to connect to wireless peripherals. Connect a headset using the 3.5mm combo audio jack, or access compatible SD, SDHC, and SDXC memory cards via the integrated card reader.

Wi-Fi 6E and 2.5 Gigabit Ethernet
Hop online in a flash with Wi-Fi 6E or wired 2.5 Gigabit Ethernet.

Multi-Display Support
In addition to an HDMI 2.0b port, the NUC 11 Extreme features two Thunderbolt 4 ports supporting DisplayPort Alt Mode, allowing you to connect up to three displays for improved productivity, streamlined multitasking, and immersive views.

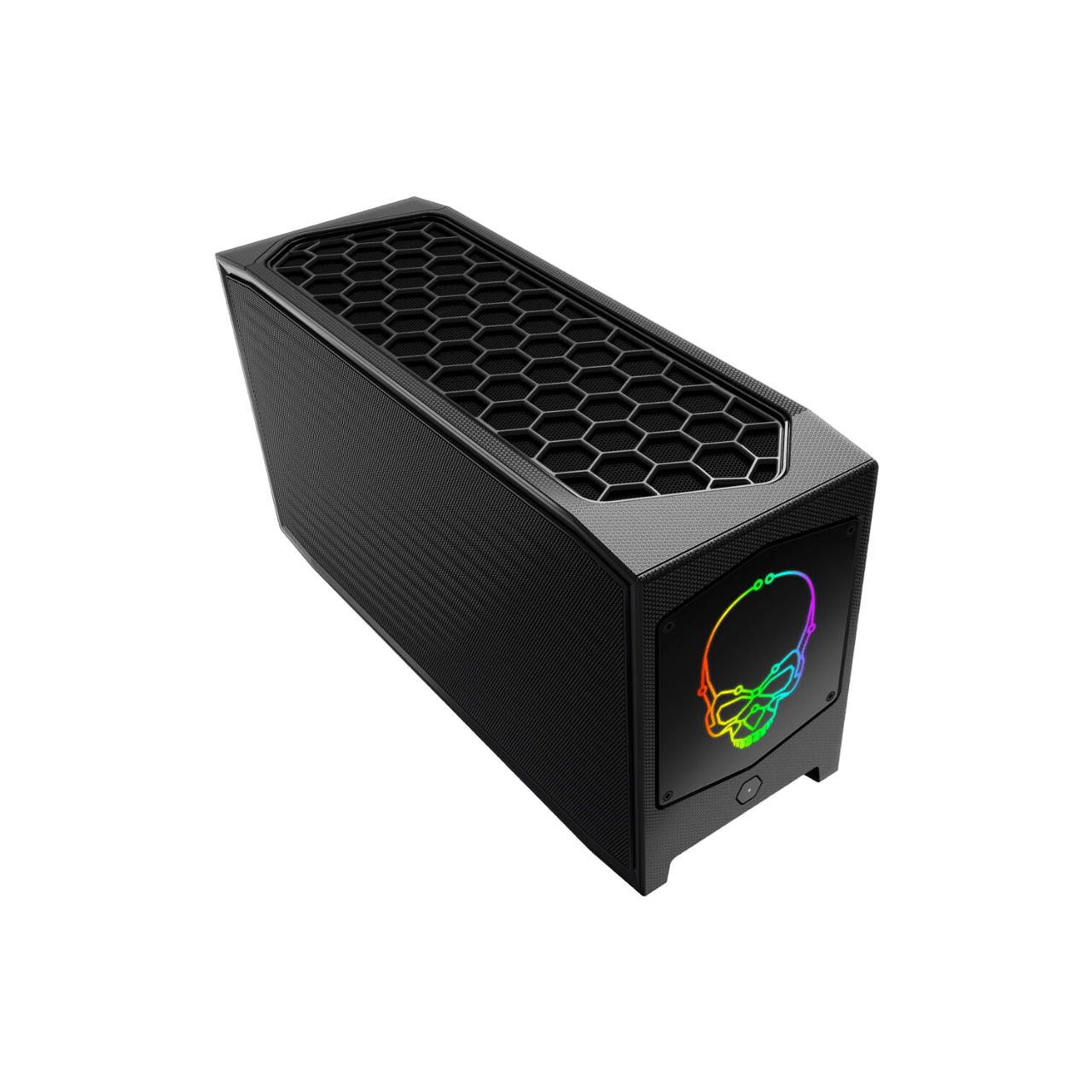

Compact Chassis
Featuring a volume of just 8L, this compact mini desktop computer is designed to bring plenty of power without taking up too much space.

USB 3.1 Gen 2
Doubling the speed of its predecessor, USB 3.1 Gen 2 features a maximum throughput of 10 Gb/s when used with compatible devices and is synonymous with USB 3.2 Gen 2.

Operating System	None
Performance
CPU Architecture	x86
Chipset	Intel WM590
Processor	Intel Core i7-11700B (11th Gen)
CPU	3.2 to 4.8 GHz 8-Core
L3 Cache	24 MB
Graphics Type	Integrated
GPU	Intel UHD Graphics
Memory Type	3200 MHz DDR4
Total Installed Memory	None
Maximum Memory Capacity	64 GB
Memory Slot Type	260-Pin SO-DIMM
Memory Slots	2 (2 Available)
Buffered Memory	No
ECC Memory	No
Storage and Expansion
Total Drive Bays	None
SSD Slots	2 x M.2 PCIe 4.0 x4 (Available)
	2 x M.2 PCIe 3.0 x4 (Available)
Total Installed Capacity	None
PCI Expansion	1 x PCIe 4.0 x16 (Available)
	1 x PCIe 4.0 x4 (Available)
Optical Drive	None
I/O
Ports	8 x USB-A 3.1/3.2 Gen 2
USB Type-C	2 x Thunderbolt 4 (Supports DisplayPort and Power Delivery)
Display	1 x HDMI 2.0b
Audio I/O	1 x 1/8" / 3.5 mm Headphone/Microphone Input/Output
Built-In Speakers	None
Built-In Microphones	None
Media/Memory Card Slot	Single Slot: SD/SDHC/SDXC (UHS-II)
Communications
Ethernet	1 x RJ45 (2.5GbE)
Wi-Fi	Wi-Fi 6E (802.11ax)
MU-MIMO Support	2 x 2
Bluetooth	5.2
GPS	None
NFC	No
Security	Kensington Lock Slot
