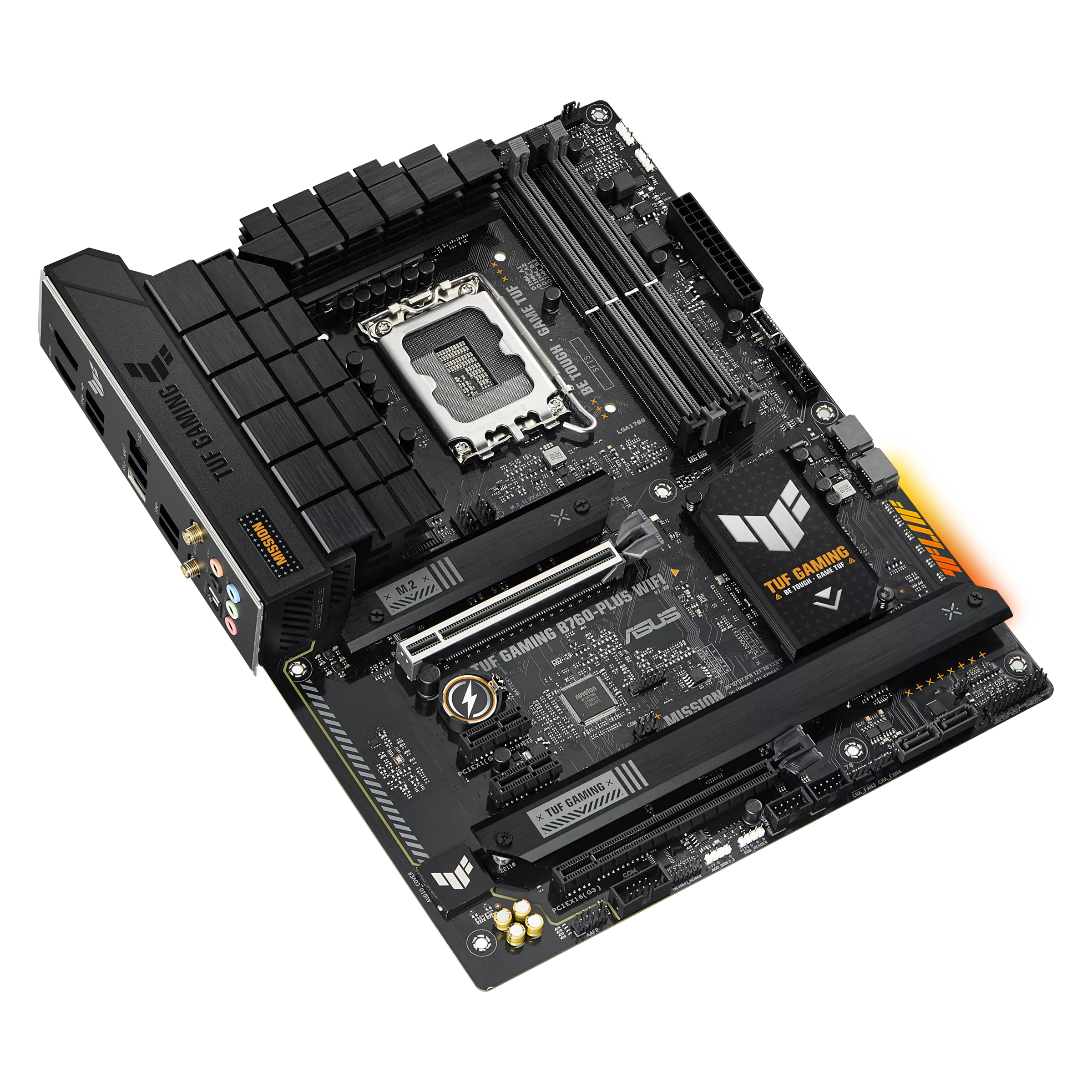

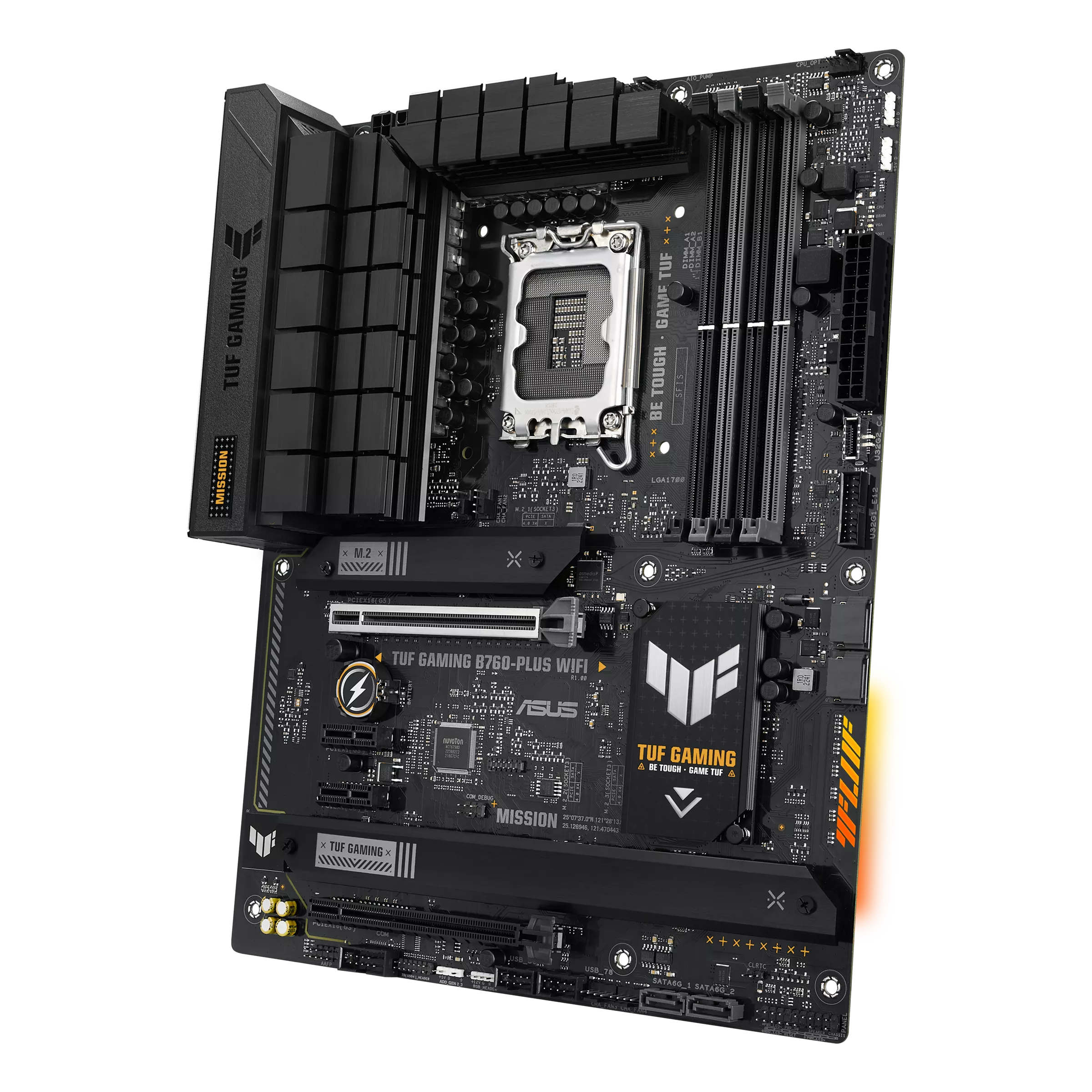

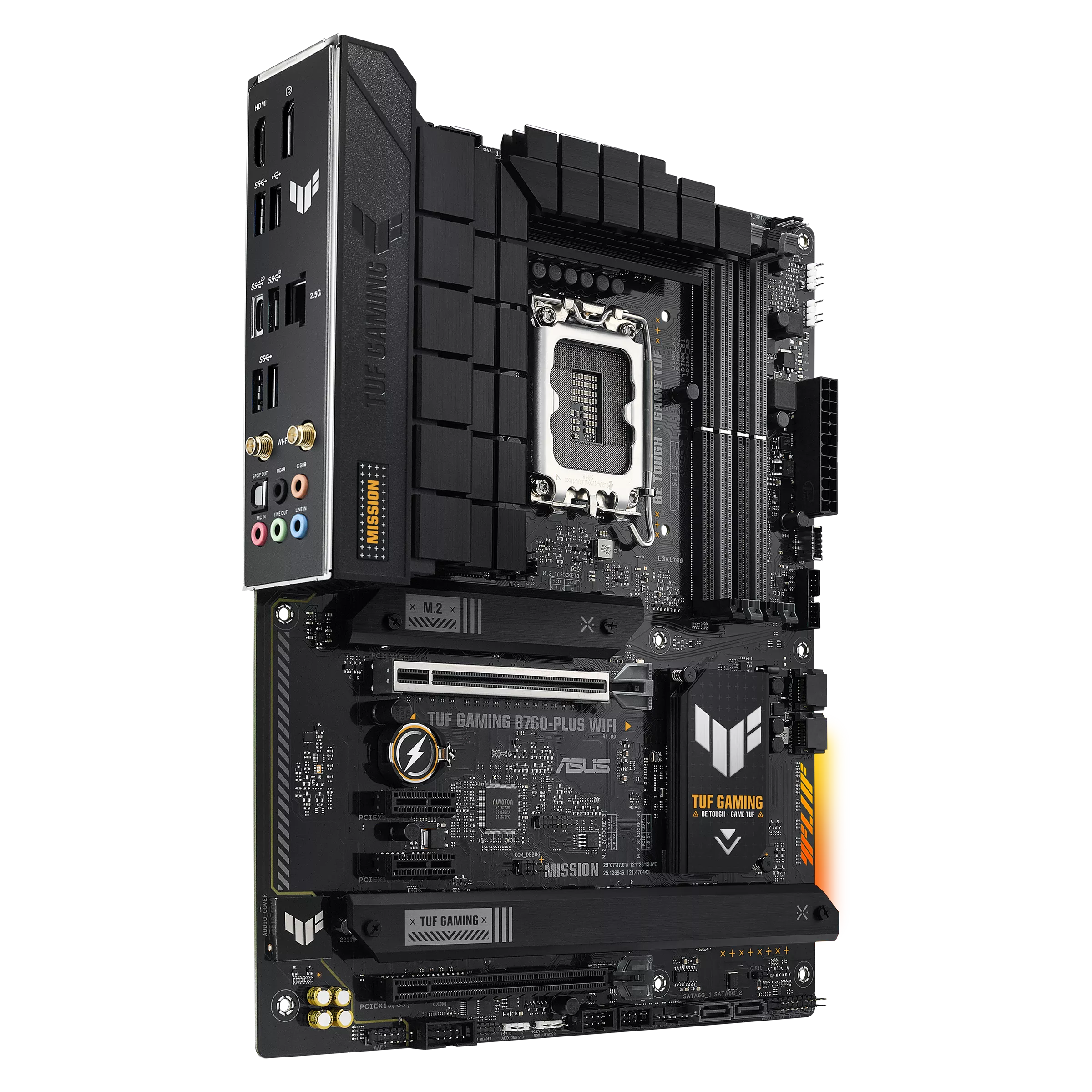

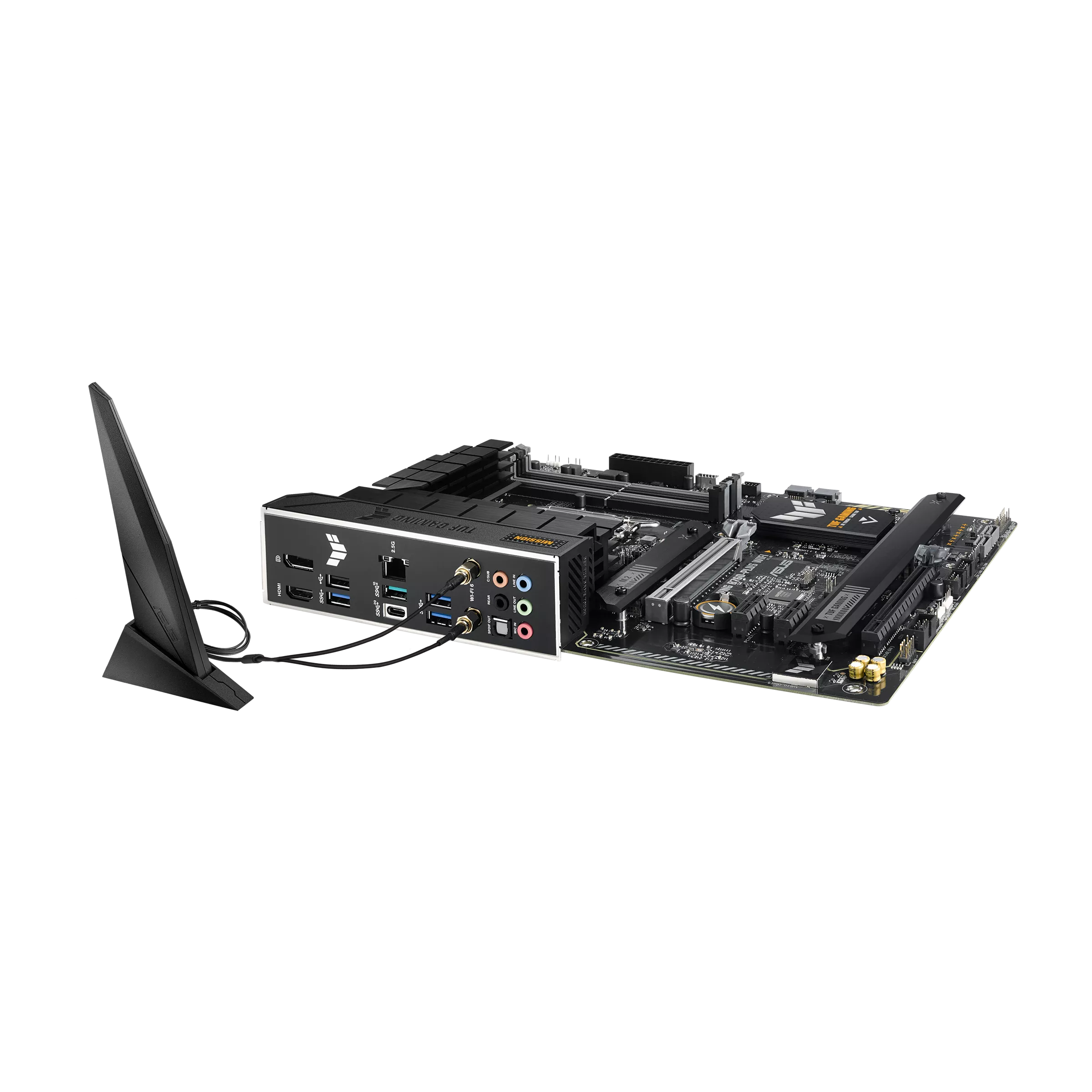

The ASUS TUF GAMING B760-PLUS WIFI is a durable ATX motherboard designed for Intel 14th Gen, 13th Gen, and 12th Gen Core processors using the LGA1700 platform. Powered by the Intel B760 chipset, it delivers stable gaming performance, efficient cooling, and reliable power delivery for modern gaming and productivity systems. Built with military-grade TUF components, reinforced PCIe protection, and advanced thermal design, it is engineered for long-term durability and stable high-load operation.
This motherboard supports PCIe 5.0 graphics, DDR5 memory, and multiple PCIe 4.0 M.2 slots for high-speed NVMe SSD storage. It also features WiFi 6 wireless networking, Realtek 2.5Gb Ethernet, USB 20Gbps Type-C connectivity, and ASUS-exclusive features such as BIOS FlashBack, Aura Sync RGB support, Q-Design installation tools, and Fan Xpert 4 intelligent cooling controls. With ASUS 5X Protection III and optimized connectivity, it provides an excellent platform for high-performance gaming PCs and workstation systems.
Specifications
Specifications
Details
Model
ASUS TUF GAMING B760-PLUS WIFI
CPU Socket
Intel LGA1700
Chipset
Intel B760
Supported Processors
Intel Core 14th Gen / 13th Gen / 12th Gen
Memory Support
4 x DDR5 DIMM, Dual Channel
Maximum Memory
Up to 192GB DDR5
Memory Speed
Up to 7200+ MT/s (OC)
Expansion Slots
1 x PCIe 5.0 x16, 1 x PCIe 4.0 x16 (x4 mode), 2 x PCIe 4.0 x1
M.2 Slots
3 x M.2 PCIe 4.0
SATA Ports
4 x SATA 6Gb/s
LAN
Realtek 2.5Gb Ethernet (TUF LANGuard)
Wireless
WiFi 6 (802.11ax)
Bluetooth
Bluetooth 5.2
Display Outputs
DisplayPort 1.4, HDMI 2.1
USB
USB 20Gbps Type-C, USB 10Gbps, USB 5Gbps, USB 2.0
Audio
Realtek 7.1 Surround High Definition Audio
Special Features
BIOS FlashBack, Aura Sync, ASUS 5X Protection III, Q-Design Features
Cooling
VRM Heatsinks, M.2 Heatsinks, Fan Xpert 4
Form Factor
ATX
